Cars of Tintin Series – Volkswagen Beetle

VW Beetle_cI think, “The Calculus Affair” which is based in Europe of the 1950s has maximum number of cars depicted in it compared to any other Tintin book. This book is replete with street scenes from various European cities, both real and imaginary. We are still in the temporary parking lot in front of Marlinspike Hall. Another classic and an automotive icon that is shown parked here is the Volkswagen Beetle. I don’t think, anyone, who is even remotely aware about cars can fail to recognise this vehicle.

VW Beetle_1This car was developed by the legendary Ferdinand Porsche, yes the same man who gave us another icon of automotive world. It was developed under the directions of, like it or not, Adolf Hitler, who wanted the people of Germany to be mobile. The broad directives issued were that the car should be able to:-

  • The car should be basic people’s car (Volks (people) Wagen (car)).
  • It should seat two adults and three children.
  • Should be capable of doing a 100 km/h (62 mph).
  • Should not consume more than 7 litres of petrol to cover those 100 Km.
  • The engine had to be powerful enough for rapid and sustained cruising on the newly built German Autobahns (another idea of Adolf Hitler).
  • The car had to be designed in such a way that any parts requiring a replacement should be replaced easily and cheaply.
  • The engine had to be air cooled so that the car could be used by the Volks in the German winters without requiring a paraphernalia to start the car. Reason being that in 1934, when this car was conceived, anti-freeze additives were a new invention used only in aircraft engines.

VW Beetle_4This Wagen was made available to the German Volks through a saving scheme called the Sparkarte (Saving book) at a price of 990 Reichsmarks. This was then the cost of a small motorcycle. In Germany, the average weekly income was 32 Reichsmarks.

Within a year of production starting in 1938, Germany was at war. As a result, a handful of these

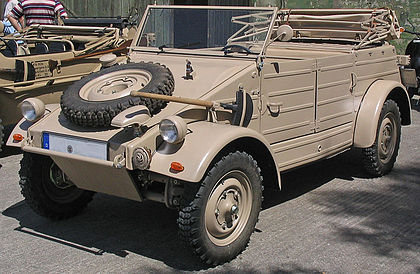

VW_Kuebelwagen_1
Kubelwagen

cars were produced while the effort was shifted to producing military vehicles based on the same chassis, namely the 4X4 Kubelwagen and the amphibious Schwimmwagen. A few of these cars were built as the modified 4X4 Kommandeurwagen which looked similar to the Beetle, but were wider to accommodate the all terrain tyres.

VW Beetle_2After the war, the Volkswagen factory was handed over to the British who refused to ship it to UK giving the reason – “the vehicle does not meet the fundamental technical requirement of a motor-car … it is quite unattractive to the average buyer … To build the car commercially would be a completely uneconomic enterprise”, how they would have kicked themselves later!!!! This uneconomic, unattractive vehicle which did not meet the fundamental technical requirements of a car went on to be manufactured from 1938 to 2003 (55 years) in 15 countries selling more than twenty one and a half million  (21,529,464) cars worldwide.

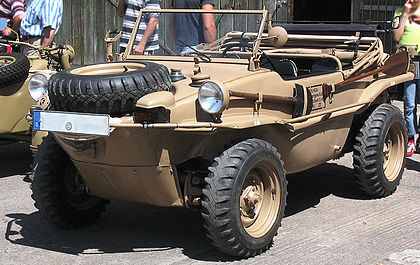

Schwimmwagen
Schwimmwagen

Ironically, the first orders came to Volkswagen from the British Army for a 1000 cars, named as the Volkswagen Type 1. Though officially the name continued, the car was popularly known as the beetle. The Beetle was better than its competitors because it could touch a maximum speed of 115 km/h (71 mph), do a 0–100 km/h (0–62 mph) dash in 27.5 seconds and return 6.7 l/100 km (36 mpg). It was better on the highways compared to a Citroen 2 CV which was aimed for low speed driving on poor roads and the Morris Minor, which was designed for a market with no motorways. It was even comparable with modern city cars like the Austin Mini.

VW Beetle_6In 1950, the Microbus was introduced which was based on the same chassis and concept of engine layout and transmission. This was another hugely successful offering from Volkswagen.

The Volkswagen Beetle (Type 1) was offered as:-

  • 2-door saloon
  • 2-door convertible

VW Beetle_3The 1954 model was powered by an air cooled by a four cylinder naturally aspirated boxer petrol engine placed at the rear of the car and driving the rear wheels through a four speed gearbox. This engine displaced 1,192 cc (72.74 Cu-inch) and produced 38.5 HP at 3,900 rpm. It also generated 89 N-m (65.6ft-lb) of torque. This power was enough to push the 740 kg (1631lb) car to a maximum speed of 115 km/h (71 mph). Stopping power was provided by, depending on the model,  hydraulically operated or mechanical drum brakes on all four wheels.

VW Beetle_5Suspension was provided by two square torsion bar springs at front and one round torsion bar spring on each side at rear.Double acting hydraulic shock absorbers were provided front and rear.

Though production continued in Brazil and Mexico till 2003, the model was reinvented and introduced as the new Beetle in Europe in 1997. This car, though heavily inspired by the original Beetle in styling, had a conventional front engine-rear wheel drive configuration.





Advertisements

2 thoughts on “Cars of Tintin Series – Volkswagen Beetle

  1. Ouch, where to start with this awful lot of errors?
    The first motorway in the world was opened by Konrad Adenauer (as lord mayor of Koeln) between Koeln and Bonn, and predates the dictatorship of the ugly man from Austria, called Groefaz (= groesster Fuehrer aller Zeiten) by decent people. Groefaz downgraded it, so he could open the first motorway between Frankfurt am Main and Darmstadt, which was the first built under his rule, but not the first Autobahn. He certainly did not invent the Autobahn, nor did he have any thoughts on a network. The idea and concept were developed since the mid 1920s, while Groefaz was busy being a thug and vandalising… The Beetle was an outdated design from day one, with the Citroen 2CV and the Tatra V570 (from which the Beetle is plagiarised) being of vastly superior construction. Ferdinand’s design creativity certainly wasn’t at large during the design, both, Tatra and Citroen have novel features, the Beetle is a collection of outdated design elements from other vehicles, and not even the best of those) . Heavy on fuel (about 11 to 13l/100km at 80km/h, i.e. almost twice the figure you quote) it is almost impossible to control on motorways (I did my driving school and – test in one, and that included Autobahn driving, you can’t counter cross-winds or lorry suction, and you only have a vague control of direction), and it is a major challenge to park (as the corners are invisible and it has a turning circle of a super tanker at over 15m). To call the 24PS engine ‘powerfull’ is hilarious, especially for a 1,3t vehicle; so your sustained 100km/h is only feasible with rear wind and down a hill. The acceleration equals that of a hand-pushed lawnmower! And the Citroen, even though not designed for motorways, achieves the same sustained motorway speed with the same reliability as the Beetle; at half the fuel consumption, half the stress of driving and twice the comfort. Can’t say for the Tatra as I only have driven the Beetle and the 2CV.
